Melt-blown Nonwoven Lab Equipment


Product Overview:

- Benchtop Meltblown lab equipment models: Single-hole meltblown benchtop lab equipment,  Mono- & Bi-component optional.

- Small-scale Meltblown Nonwoven lab equipment models: 100~300mm width of Meltblown nonwoven lab equipment; Mono- & Bi-component optional.

- Pilot-scale Meltblown lab machine models: 600~1000mm width of Meltblown pilot line and other pilot models, Mono- & Bi-component optional, can be used for pilot-scale experiments and for continuous production of special nonwovens.

- KMD’s Spin-pack components are developed and designed independently and have our own manufacturing capability. KMD designs and manufactures the Spin-pack components of the above models, and undertakes the design and co-development of new Spin-pack components.


- Low raw material consumption and with high speed testing.

- It is equipped with a unique hot-roll milling electrical heating systems; so that it is more flexible and more convenient in temperature adjustment.

- Hot-roll milling unit is easy to equip with a variety of rolling forms.

- Mode of receiving fiber is changeable.

- PP, PA, PET, PLA and some other materials can be used.


The General Image of Melt-blown Nonwoven Lab Equipment
Special types, such as bi-component and etc., can be designed and manufactured according to customers’ requirements.

Please click Communication.



Main Application:
- Use for Simulating large- scale production processes and process technology research and etc.

- It is used for a variety of scientific researches, for example R&D of the new polymeric material, rolled technology R&D and etc.

- Research on nonwoven fabric technology, such as the distribution of fibers in meltblown nonwoven netting, multi-component      material composite netting and other tests.

- Development, testing and application trial production of functional materials, etc.

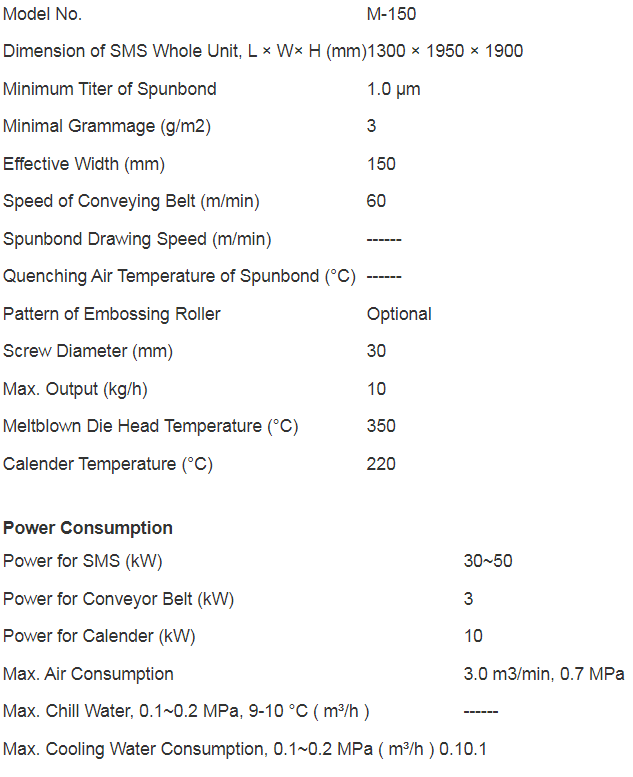

  Melt-blown Nonwoven Lab Equipment Technical Data:

Model No.



Dimension of SMS Whole Unit, L × W× H (mm)

1300 × 1950 × 1900


Minimum Titer of Spunbond

1.0 μm


Minimal Grammage (g/m²)



Effective Width (mm)



Speed of Conveying Belt (m/min)



Spunbond Drawing Speed (m/min)



Quenching Air Temperature of Spunbond (°C)



Pattern of Embossing Roller



Screw Diameter (mm)



Max. Output (kg/h)



Meltblown Die Head Temperature (°C)



Calender Temperature (°C)



  Power Consumption

Power for SMS (kW)



Power for Conveyor Belt (kW)



Power for Calender (kW)



Max. Air Consumption

3.0 m3/min, 0.7 MPa


Max. Chill Water, 0.1~0.2 MPa, 9-10 °C (m³/h)



Max. Cooling Water Consumption, 0.1~0.2 MPa (m³/h)

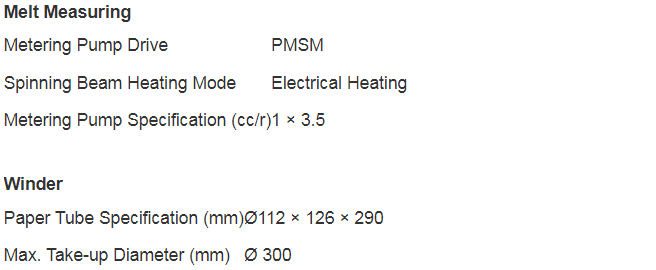

  Melt Measuring

Metering Pump Drive



Spinning Beam Heating Mode

Electrical Heating


Metering Pump Specification (cc/r)

1 × 3.5



Paper Tube Specification (mm)

Ø112 × 126 × 290


Max. Take-up Diameter (mm)

Ø 300



  Relevant data and content are subject to the latest released information. More data will be determined according to the actual configuration.


Melt-blown Nonwoven Lab Equipment
